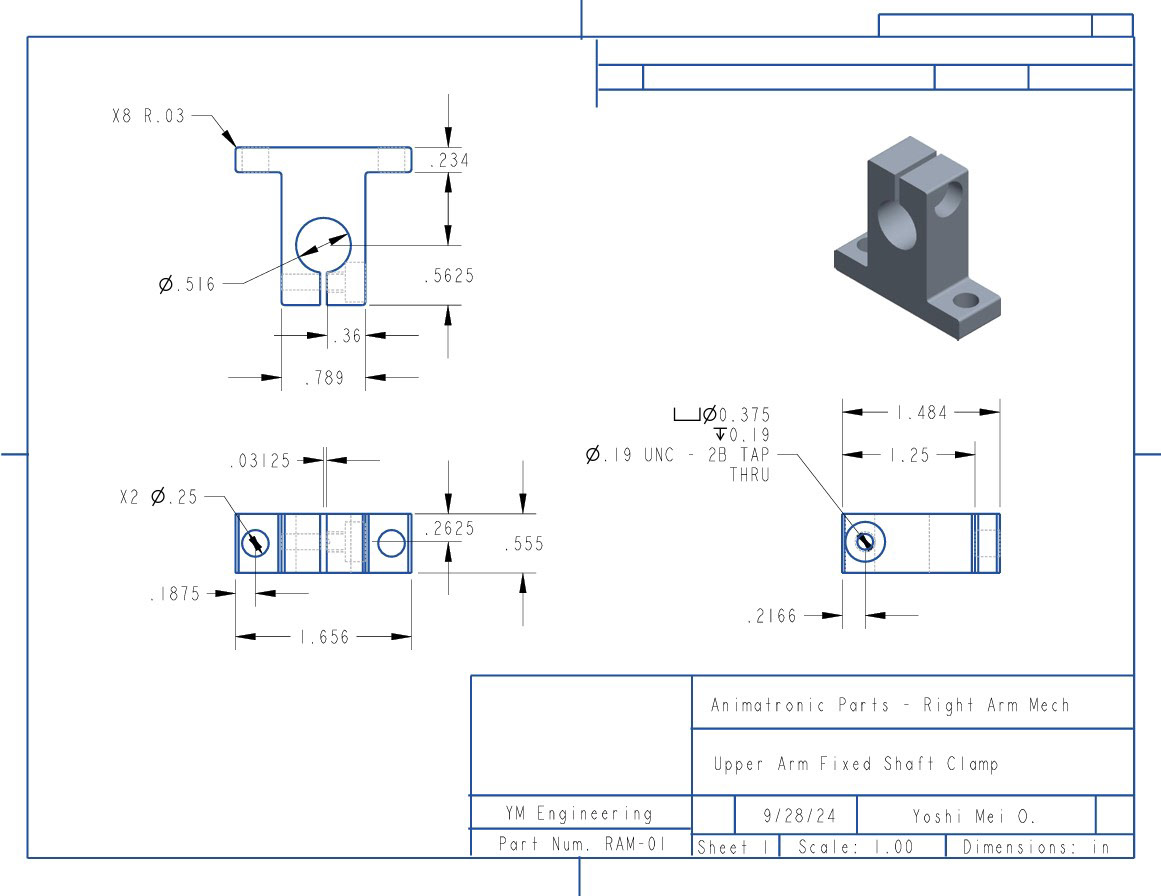

Examples of Engineering Drawings made from CAD models
(Dimensions censored for parts designed by me)​​​​​​​
(My portfolio is intended to provide examples of my various skillsets, and to get to know me as an artist; therefore, it is casual in the selection of work shown, and is not crafted to suit any particular need.)
Most parts are designed and modeled by me, other parts are modeled by taking measurements from existing parts for practice or CAD assembly purposes.
